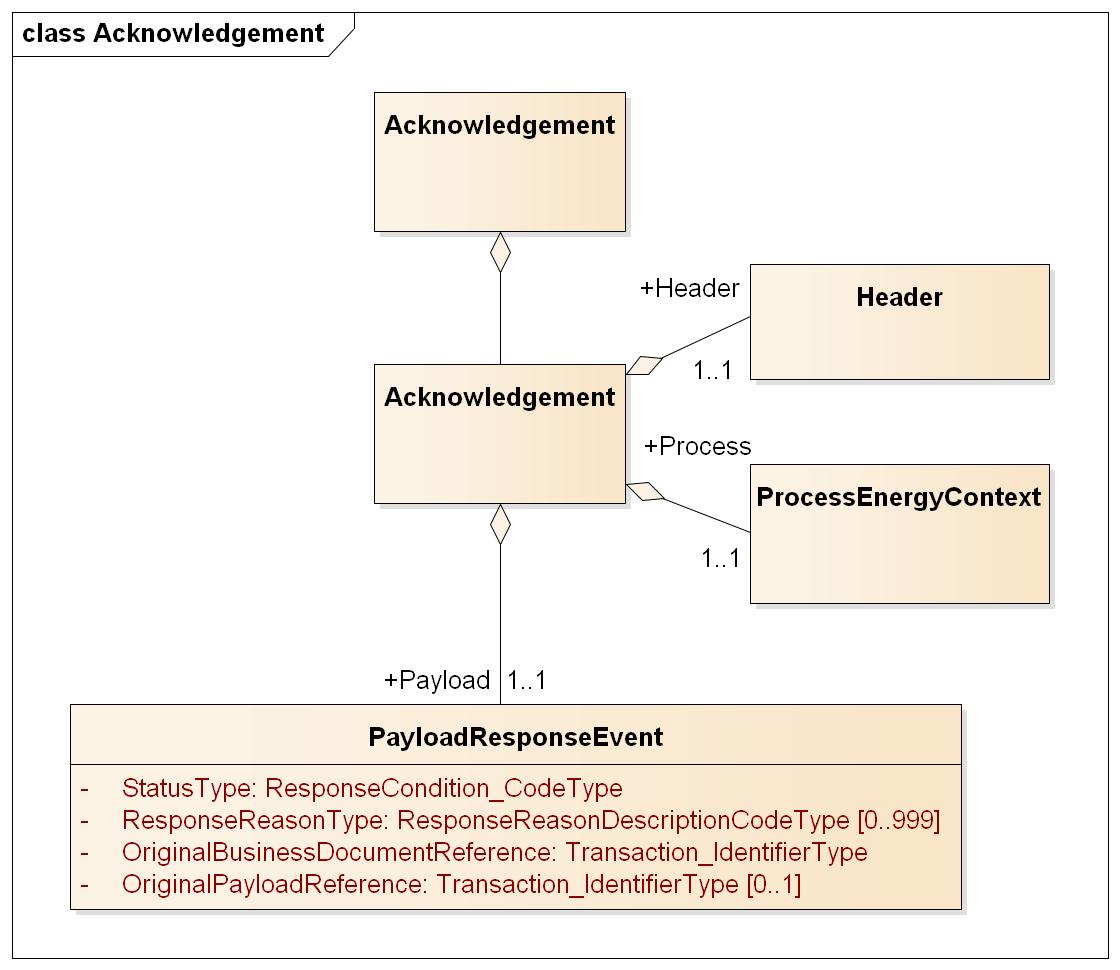

Acknowledgement
Acknowledgement

Header
Ref. Header
Document type for outgoing Acknowledgements from Elhub: 294 - Application acknowledgement and error report
Process
Ref. Process
Payload
Element | Lv | Definition | Description | Card | Max | Content | XML element |
---|---|---|---|---|---|---|---|
Response Event | 1 | Response event class | 1..1 | PayloadResponseEvent | |||
Status | 2 | Code indicating if the business document was accepted or rejected. | Valid codes: | 1..1 | A2 | StatusType | |
listAgencyIdentifier | 2 | Attribute to the status code | Identification of the agency maintaining the status codes. | 1..1 | A1 | 6 | listAgencyIdentifier |
Response reason | 2 | Code indicating the reason(s) for the rejection | Valid codes: | 0..999 | A5 | ResponseReasonType | |
listAgencyIdentifier | 2 | Attribute to the response reason code | Identification of the agency maintaining the reason codes. 89 Elhub | 1..1 | A3 | 260 OR 89 | listAgencyIdentifier |
Original Business Document Reference | 2 | The identification of the business document which is acknowledged | 1..1 | A36 | OriginalBusinessDocumentReference | ||
Original Payload Reference | 2 | The identification of a payload within a message (used for CollectedData messages containing errors) | 0..1 | A36 | OriginalPayloadReference |
